Overview

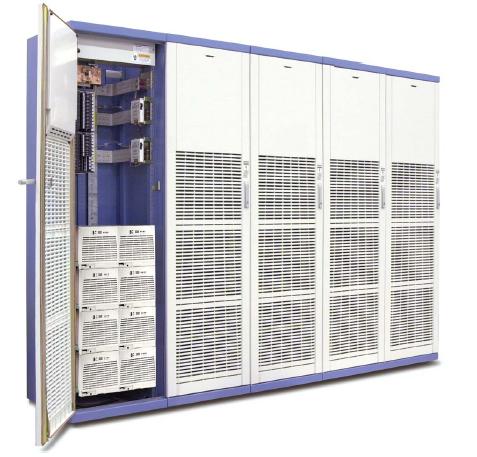

The industry standard for telecom power, the GPS4848/100 is the first choice to meet DC power requirements of large centralized switching, and Internet Services data center applications. The GE GPS provides output capacities up to 20,000A in an integrated multi-cabinet configuration utilizing 3-Phase 3-wire rectifiers operating on commercial 208/220/240Vac or 380/400/480Vac. The Galaxy Millennium II controller provides detailed system management and flexible control of GE and third part equipment.

Benefits

• Telecom central office, IS data centers and MTSO applications
• Streamlined system control and monitoring
• 20,000 Amp capacity
• Rectifier efficiencies approaching 96%

Overview

The GPS 4827 capitalizes on the product strengths found in the GPS 4848 and Infinity product families by integrating the high efficiency Infinity TE rectifier platform and the time-tested distribution found in the GPS 4848. Utilizing the 1U 50A 48Vdc rectifiers, a fully equipped bay only requires 15.75 inches allowing for as much as 54 inches of distribution panels. With this increased density, a single bay system provides ampacity and distribution for most medium and small applications but retains all the features found with the larger GPS 4848.

Benefits

• Medium power applications utilizing single-phase or 3-phase 240Vac input
• Full featured control and monitoring capability
• 1,800 Amp capacity per bay
• Efficiency approaching 97%

Overview

The GPS 2436 capitalizes on the product strengths found in the GPS 4848 and Infinity product families by integrating the high efficiency Infinity TE rectifier platform and the time-tested distribution found in the GPS 4848. Utilizing the 1U 100A 24Vdc rectifiers, a fully equipped bay only requires 15.75 inches allowing for as much as 54 inches of distribution panels. With this increased density, a single bay GPS 2436 system provides ampacity and distribution for most medium and small applications while retaining all the features found with the larger GSP 4848.The GPS 4827 capitalizes on the product strengths found in the GPS 4848 and Infinity product families by integrating the high efficiency Infinity TE rectifier platform and the time-tested distribution found in the GPS 4848. Utilizing the 1U 50A 48Vdc rectifiers, a fully equipped bay only requires 15.75 inches allowing for as much as 54 inches of distribution panels. With this increased density, a single bay system provides ampacity and distribution for most medium and small applications but retains all the features found with the larger GPS 4848.

Benefits

• Medium power applications utilizing single-phase or 3-phase 240Vac input
• Full featured control and monitoring capability
• 3,600 Amp system capacity
• Efficiency approaching 97%

Overview

The industry standard for DC energy systems, the GPS 4812/24 is the first choice to meet DC power requirements of medium datacenter and central office applications. The GE GPS provides output capacities up to 6,400A in an integrated, multi-cabinet configuration; 1,600A in a full height single cabinet; or 800A in a half height cabinet for mounting above VRLA batteries. True 3-phase 3-wire rectifiers operate on commercial 208/240Vac or 480Vac. The Galaxy Millennium II controller provides detailed system management and flexible control of GE and third party equipment. GPS is installed and supported by the most experienced services.

Benefits

• Medium power applications requiring 1-phase or 3-phase 240 Vac input
• Streamlined system control and monitoring
• 6,400 Amp capacity
• Efficiency approaching 97%

Overview

The Infinity M DC Power system is a modular power plant that supports dual voltage (+24V/- 48V) operation through the use of a comprehensive range of advanced rectifiers and DC/DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC/DC converter modules. Primary voltage can be -48V or +24V. The Infinity M Power System has primary voltage capacity for +24V and -48V power up to 1,600A; secondary voltage capacity is up to 300A per expansion module.

Benefits

• ECO Priority Source ready
• Dual Voltage power system with ultimate flexibility
• -48V up to 1,200A (65KW) or +24V up to 1,600A (44KW)
• Secondary voltage up to 600A
• High availability wireless telecom applications
• Telecom service providers
• Efficiency approaching 97%

Overview

The Infinity D DC Power system is a modular power plant that supports dual voltage (+24V/- 48V) operation through the use of a comprehensive range of advanced rectifiers and DC/DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC/DC converter modules. Primary voltage can be -48V or +24V. The Infinity D Power System has primary voltage capacity for +24V and -48V power up to 1,600A; secondary voltage capacity is up to 300A per expansion module.

Benefits

• Modular DC power system enables low initial investment with future expansion potential
• -48V up to 1,600A (87KW) or +24V up to 1,600A (43KW)
• DC Power Plant with 24V and 48V DC dual voltage flexibility
• High-availability wireless telecom applications
• Telecom service providers and OEMs
• Efficiency approaching 97%

Overview

The Infinity S DC Power system is a compact power plant that supports dual voltage (+24V/- 48V) operation through the use of a comprehensive range of advanced rectifiers and DC-DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC-DC converter modules. Primary voltage can be -48V or +24V. The Infinity S Power System has primary voltage capacity for +24V and -48V power up to 800A; secondary voltage capacity is up to 120A per expansion module.

Benefits

• ECO Priority Source ready
• Dual Voltage power system with ultimate flexibility
• -48V up to 600A (32KW) or +24V up to 800A (22KW)
• Secondary voltage up to 120A
• High availability wireless telecom applications
• Telecom service providers
• Efficiency approaching 97%

Overview

The Infinity C introduces a new concept in flexibility, scalability, and functionality in small stand-alone shelf power. The Infinity C DC-to-DC power system can be powered from any readily available DC battery plant and provides reliable, protected power to a variety of load devices. The system’s configurable design enables users to tailor power capacity, input feed, and protection devices to fit numerous application spaces. Input power feed may be 24VDC or 48VDC. Up to 4 slots are available for converters that feed a common output bus. Input power may be bulk fed to all power slots or individually fed to each slot. As many as 6 plug-in or bolt-in CB and 10 GMT positions can be equipped in a single shelf.

Benefits

• Negative (663) or Positive (664) Output
• Large plant features in a small plant package
• Battery management including discharge test
• Industry leading efficiency of 93%

Overview

The Infinity P2 DC Power system is a modular power plant that supports positive or negative voltage output operation through the use of a comprehensive range of advanced rectifiers and DC-DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC-DC converter modules. The Infinity P2 Power System has primary voltage capacity for +24V and -48V power up to 2000A; secondary voltage capacity is up to 90A.

Benefits

• Dual Voltage power system with ultimate flexibility
• -48V or +24V up to 2000A
• Secondary voltage up to 90A
• 48 and 80 position distribution option

Overview

CPS6000 systems are easy to setup and operate with a broad range of applications in outside plant and customer premise locations. The controller can be configured using either the front panel display, a laptop computer connected to the local port, or remotely using the Ethernet connection. Battery management features and options include slope thermal compensation, low voltage battery disconnect, battery high temperature alarm and battery shorted cell detection. Ideally suited for applications where space and durability in harsh environments are critical, CPS6000 is available in either front or rear wiring configurations.

Benefits

• Hardened for extreme environments
• OSP cabinet and customer premise applications
• Efficiency approaching 97%
• High density power
• 10 to 600A Systems at -48V
• Flexible AC Input

Overview

The 48V CPS6000-M2 Power Plant is a 23 inch wide, front access, frame mounted battery plant. The system integrates the QS series rectifiers and ringers, extensive dc distribution options, battery connections and the Galaxy Millennium II controller in 500A and 1000A capacity systems. The system operates directly from commercial power in 208/220/240Vac single phase @ 50/60Hz. 110Vac operation is also available with some rectifiers. AC connects to a terminal block panel at the top of the system.

Benefits

• Hardened Rack systems up to 1000 Amps
• 15" depth, ideal for limited spaces
• 96% efficiency
• Rectifier commonality with CPS6000 OSP systems
• Deployed in small central offices, hut/ vault, and large customer premise applications
• Available battery trays for stand-alone deployment

Overview

The Line Power Systems is designed to remotely power -48Vdc network equipment reliably using +/- 190Vdc over existing copper lines deployed between central offices and remote outside plant (OSP) cabinets. New voice, video and data subscriber services can be delivered over fiber optic lines, while the legacy copper lines already deployed in the ground are used to leverage the central office battery backup and generator power sources in the event of an electrical utility grid outage. Applications include triple-play infrastructure, wireless network distributed antenna systems, and FTTN/FTTH fiber infrastructure.

The Line Power Systems modular architecture provides both upstream and downstream converters. Upstream converter shelves are available for both central office applications and OSP cabinets. Upstream power converters take -48Vdc input and convert to +/- 190Vdc output power for distribution over twisted pair copper lines with appropriate input current limits and hold-over. Downstream converter shelves are available for 650 Watt and 1300 Watt applications. Downstream power converters take +/- 190Vdc input over twisted pair copper and convert to -48Vdc to power remote network equipment. This provides power distribution with battery back-up maintained at a central location to avoid costs of deploying and maintaining remote battery strings at OSP cabinet or customer premise locations.

Benefits

• Hardened for extreme environments
• Central Office and OSP cabinet deployment
• Upstream and downstream modular architecture
• High density power

Overview

The Compact Power Line platform is designed to provide highly reliable DC power for 48V distributed power architectures. A single shelf configuration provides up to 11kW of 48V output power in 1U high and mounts in 19-inch or 23-inch wide frames. The CPL product platform is easily expandable for future growth. CPL is a reliable DC power solution for mission critical enterprise and telecommunications network equipment.

Benefits

• Compact 48V DC distributed power system
• Efficiency approaching 97%
• Maximum power in minimal space
• Scalable to 80 kW
• Powering enterprise and telecommunications networks

Overview

The Slimline Power System provides advanced controller features in a compact, cost-efficient footprint. The SPS shelf is 1.75†high, 10.3†deep and mounts in 19-inch or 23-inch wide frames, with three power slots for rectifiers and distribution. The Pulsar Edge controller has Ethernet connectivity to facilitate remote network management to monitor and control rectifiers, batteries, and distribution. SPS is a reliable DC power solution where system height and depth are restricted.

Benefits

• Customer premise power for converged networks
• Large plant features in a small plant package
• 3000 Watts / 60 Amps single shelf capacity in 1RU
• 10.3 inches (264mm) depth is ideal where space is restricted
• 95% efficiency

Overview

The Power Express Class 2 Distribution is a 1RU shelf that provides 32 100VA limited circuits for safe powering of remote loads. NEC Class 2 rating allows for power cabling to be deployed in data cable raceway instead of conduit thus reducing labor time and increasing speed to market. The Power Express Class 2 Distribution incorporates 4 replaceable modules that generate 8 100VA circuits each. Each circuit is internally fused within the module eliminating the possibility of users plugging an incorrect rated fuse. This guarantees that each circuit maintains compliance to the tested Class 2 safety rating under UL. Each shelf is designed to support an alarm card for stand-alone deployment and can be uplinked over the RS-485 data bus through the RJ-45 connections on the rear of the shelf. This uplink allows each shelf to interface a GE Pulsar Plus controller (commonly used in our Infinity Power Systems) allowing local access, alarming and control of each circuit in every shelf as well as remote interface over the controller LAN connection.

Benefits

• Fast and Easy circuit terminations speed deployment
• Individual circuit on/off/reset
• Replace modules without re-wiring the shelf
• Simple push button operation
• Guaranteed Class 2 delivery with internal fusing (higher rated fuses cannot be installed thereby violating the class 2 performance)
• Uplink to master controller for remote access over LAN

Overview

The DC Power industry offered stand-alone 200, 400 and 800 ampere ferro-resonant rectifiers throughout the 1980s and 1990s. These legacy ferro-resonant rectifiers have since been discontinued by most manufacturers. The Ferro / SCR Retrofit Power Solution allows GE and third party legacy ferro-resonant or SCR rectifiers to be upgraded to modern energy-efficient switched mode rectifiers and controller technology while preserving existing cabling and distribution investments. Bolting patterns remain the same as well.

Benefits

• Preserves distribution and cabling investments
• Retrofits legacy ferro or SCR rectifiers
• Modern Galaxy SC and Millennium II controllers
• Active Rectifier Management (efficiency management)
• Thermal compensation and battery management features
• Efficiency approaching 97%
• Integrated 10/100Base-T Ethernet as well as serial port for local or modem connectivity

Overview

GE offered the Lineage 2000 ECS telecom power systems throughout the 1980s and 1990s. The ECS Retrofit Power Solution enables these legacy power systems to be upgraded to modern rectifiers and controller technology, while leaving the distribution, shelves and frame in place.

Benefits

• Preserves distribution and cabling investments
• Modern Galaxy Pulsar Plus controller
  • Active Rectifier Management (efficiency management)
  • Thermal compensation and battery management features
• -48V up to 600A (16.2 KW) or +24V up to 1200A (16.3 KW)
• Efficiency approaching 97%

Overview

GE offered the CPS2000, CPS4000, OLS and SLC telecom power systems for outside plant (OSP) applications over the past 30 years. The OSP Retrofit Power System enables these legacy cabinet power plants to be upgraded to modern rectifiers and controller technology, while leaving the distribution, shelves and frame in place.

Benefits

• Preserves distribution and cabling investments
• OSP cabinet and customer premise applications
• Efficiency approaching 97%
• High density power
• 15 to 250A Systems at -48V
• Flexible AC Input

Overview

The Infinity B DC Power system is a universal bulk power plant that supports dual voltage (+24V/-48V) operation through the use of a comprehensive range of advanced rectifiers and DC-DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC-DC converter modules. Primary voltage can be -48V or +24V. The bulk output panel is capable of connecting two 750 MCM and two 4/0 cables per polarity. Output can be routed top or bottom.

The Infinity B Power System has primary voltage capacity for +24V power up to 1,600A and -48V power up to 1,200A; secondary voltage capacity is up to 600A based on input capacity module.

Benefits

• Dual Voltage power system with ultimate flexibility
• -48V up to 1,200A (65KW) or
• +24V up to 1,600A (44KW)
• Secondary voltage up to 600A
• High availability wireless telecom applications
• Telecom service providers
• Efficiency approaching 97%

Overview

GE has offered the 596 family of rectifiers from the early 1990s. 596 rectifiers can be found in the GPS4812, 2424, PXS Shelves, and OCS Cabinet applications. These power systems have a long history of service and through the evolution of technology have experienced a series of rectifier upgrades. To date, all changes have included the continued use of the original rectifier case. This new 596 replacement allows these legacy power systems to be upgraded with modern rectifiers, while leaving the distribution, shelves and frame in place.

To accommodate the Infinity, a host-carrier is installed in each rectifier slot for a seamless transition to the Total Efficiency™ (TE) rectifier technology. Functionally, the Infinity rectifiers are designed to work with all existing controllers where the 596 rectifier was used. This would include the Vector, Pulsar, Pulsar Plus, Millennium 1 & 2 as well as the Galaxy SC controllers.

Replacing all the rectifiers will gain the greatest system efficiency, however the existing 596 units can continue to work side by side with the new Infinity rectifiers. No change is needed to the output distribution, batteries, or LVD contactor of these plants with this upgrade.

The Infinity rectifiers provide a cost-effective means of modernization and growth to this installed base of 596 rectifiers. For most applications the upgrade process is no more than the removal of the 596, replacement with a carrier and the insertion of the new Infinity rectifier.

Benefits

• Replace discontinued 596 product with Plug-and-Play module
• Saved distribution and cabling infrastructure
• NEBS and CEus Certified Infinity Rectifiers
• Efficiency approaching 97%

Overview

The 827E is an N+1 redundant and expandable source of AC power for the telecommunications industry. The highly reliable AC power output is robust enough to handle linear and nonlinear loads with low power factors such as personal computers, servers and modems. Inverter modules operating in parallel eliminate the need for a second AC source of power.

Benefits

• Modular design lowers initial deployment costs
• Compact depth allows for a broad range of placement options
• True sine wave output
• Patented forced load share without LSO
• Quickly back up and restore system configuration

Overview

The Micro-BDCBB serves as a secondary power distribution center for -48 V DC power delivered from a battery plant to the load equipment. The configuration is versatile with fuse or circuit breakers options, single or dual (A/B) load bus, and 600A carrying capacity per panel. A digital meter monitors voltage and current of each load bus.

Benefits

• Ideal for customer premise power applications
• Digital meter interface
• 600 Amp capacity panels in a compact 4 RU size
• Small power distribution from battery plant to load equipment

Overview

GE has partnered with Westell/ Noran Tel offering a line of Fuse and Alarm distribution panels to meet today's increasing Network DC Power demand. With numerous variations, the FP series support most DC Power Distribution applications. The panels meet or exceed all industry standards and include adjustable mounting tabs to allow for offset and rack (19" & 23") variations allowing for single panel solutions that can fit multiple needs. To add versatility, most panels can be used in both –48VDC and +24VDC working environments. The Noran Tel fuse panels can complement most any DC Power Solution offered by GE.

Benefits

• Available with alarmed circuit breakers or fuses
• Fuse panels can be equipped with GMT, KLM, Type-70, TPA, or a combination of fuses
• NEBS, CSA & CE compliant
• Panels mount in 19" or 23" relay racks, or system cabinets
• Every panel is put through an intense quality inspection and testing process

Overview

The 5068 BDFB reflects many years of working with installers and maintenance engineers, resulting in a family of distribution products that address the needs of initial and future cabling. The 5068 BDFB provides a way to redistribute large power feeds (up to 600 Amps) to the load with multiple smaller, protected circuits.

Benefits

• Available in two heights: 7' & 9'
• Top or bottom cabling 600 Amp load shunts
• Digital metering of all load centers
• Accommodates up to 10 load center

Overview

The 5067 is a compact, high density, mini BDFB/BDCBB designed for rapid deployment. With offerings in 19”, 23” or wall mount panels, the 5067 can support single, dual or four load buses with a carrying capacity of up to 600A per load. The need to specify distribution components at the time of order is unnecessary, plug-in breakers or fuses can be easily installed when the panel arrives on-site or deferred for future needs.

Benefits

• Compact unit can be placed at the point of load
• High density — models available with 48 circuits in 16RU
• Digital metering, extended alarms and load disconnect are options for most configurations
• Flexible — circuit breakers and fuses can be added as needed, lower initial deployment costs

Overview

The SLI Family of "Slim Line" inverters feature innovative technology and patented "compact coil". These inverters pack 1500 VA of power into a small and light package for 19†or 23†frameworks in just 1 rack unit with a peak efficiency of 93%.

Benefits

• N+1 parallelable operation for capacity or redundancy without additional hardware
• Ultra compact 1U module size
• Microprocessor controlled status and monitoring ensures precise operation of all inverter functions
• True sine wave output

Overview

The 827E is an N+1 redundant and expandable source of AC power for the telecommunications industry. The highly reliable AC power output is robust enough to handle linear and nonlinear loads with low power factors such as personal computers, servers and modems. Inverter modules operating in parallel eliminate the need for a second AC source of power.

Benefits

• Modular design lowers initial deployment costs
• Compact depth allows for a broad range of placement options
• True sine wave output
• Patented forced load share without LSO
• Quickly back up and restore system configuration

KS24194 Power Wire

The economical KS-24194 non-halogenated copper wire is flame-retardant, low Smoke-emitting, and recommended for use in 600 V RHH* telecommunication power plant applications.

TE20001 Connectors

The TE-20001 Long-barrel Connectors are one-hole or two-hole compression-type terminators. They are available in straight, 45° bend or 90° bend configurations and are intended for use with copper power wire sizes ranging from 14 AWG to750kCMil. They can be used with both Class I and Class B stranded flexible power wire.

WP91412 Connectors

The reliable, high-strength WP91412 Connectors are designed for use with standard and flexible stranded power wire used in power equipment or central office applications.

Overview

GE Critical Power now offers you more options for power cable rack and associated framing, which comprise the overhead structure that routes DC power cable between batteries, power systems and switches in a central office or data center. With rugged two-inch solid stringer in both gray-painted and yellow zinc chromate finishes, you have the best options available for your power equipment applications. In addition to solid stringer, gray-painted, two-inch c-channel is available to accommodate select expansion projects. GE offers the most durable components for your power cable rack installations. Whether used in a central office, remote office or wireless hut, GE has the cable rack accessories and cable management products required to do the job. Cable racks in a building must conform to all sorts of site-specific requirements. They must run horizontally in one place or vertically in another. They must go over, under or around obstructions, and they must mount from the ceiling in one place or from below in another depending on what’s available. All the while, the cable rack must protect and fully support the cabling.

Our power cable racks include options that are similar to ED4C685-72 and will satisfy the needs for all new power plant installations. They also have excellent interface connections, making them compatible to most existing infrastructures needing upgrade or expansion.
